DMM Bat Rigging Plates

DMM Bat Rigging Plates
Click any thumbnail to view gallery.

£16.50 Exc. VAT
£19.80 Inc. VAT
Quantity:
DMM Bat Rigging Plates are strong, light and incredibly versatile
  • Description
  • Key Features
  • Documents

Description

Raising the bar in design, performance and strength DMM bat plates are precision machined and heat treated to make them super-strong, light and incredibly versatile. The distinctive ‘Bat’ shape minimises height loss in complex rigging scenarios and generous radii allow direct attachment of textiles and rope as well as connectors.

Fall Protection Rescue Rope Access Tree Care

Features

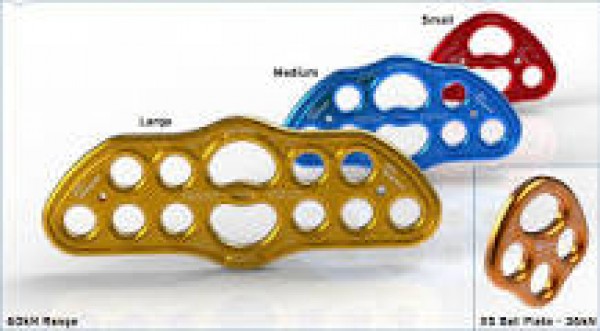

  • Four sizes for all rigging configurations
  • Textile friendly surfaces with large radii
  • Centralised connection point for stable rescuer attachment
  • CNC machined from high strength heat treated Aluminium
  • Anodised to BS EN 7599:2010 AA10 Sealed for corrosion protection
  • Conforms to NFPA 1983 (2012 Ed) Class G
  • Individually marked for traceability

Key Features


Variant
Strength
WLL
Dimensions
Weight
DMM Cat No

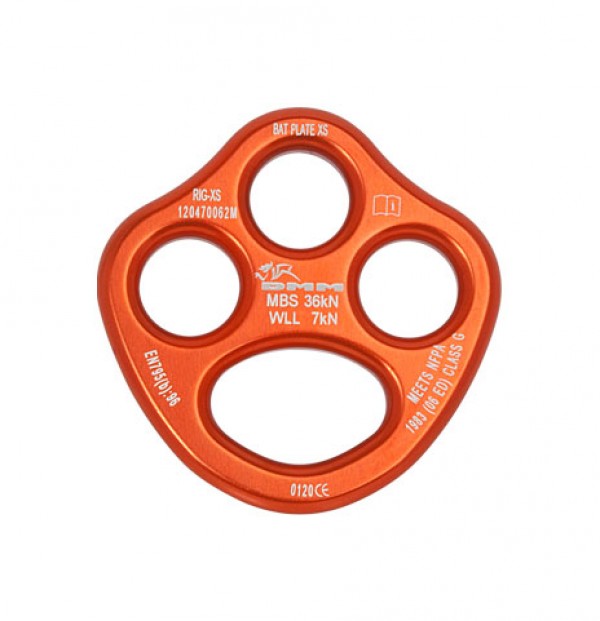

X Small Bat Plate
36kN
7kN
62x62x10mm
37g
RIG-XS-OR

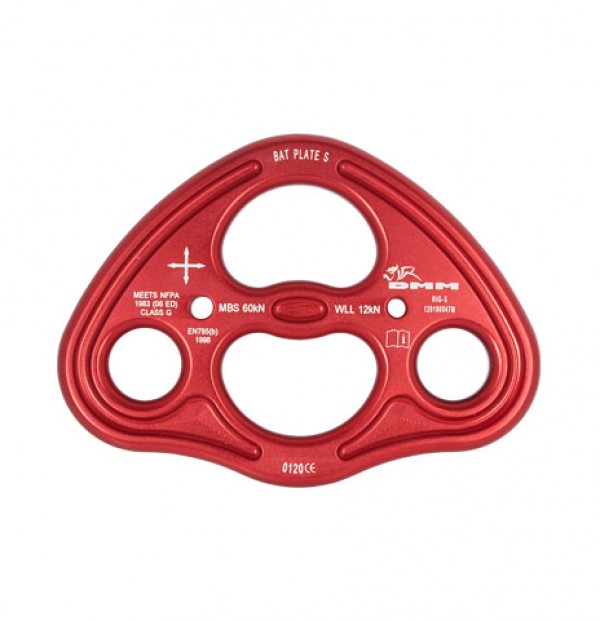

Small Bat Plate
60kN
12kN
129x95x10mm
159g
RIG-S-RD

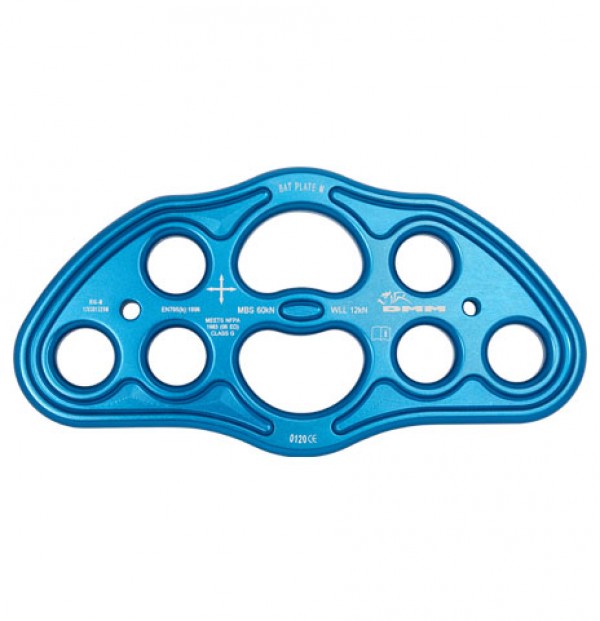

Medium
60kN
12kN
189x97x10mm
247g
RIG-M-BL







DMM

Brand: DMM

Product Code: DMMBPXS

Shipping Weight: 0.1kg.
