ZIGZAG 2019 version

ZIGZAG 2019 version
Click any thumbnail to view gallery.
£136.00 Exc. VAT
£163.20 Inc. VAT
Quantity:

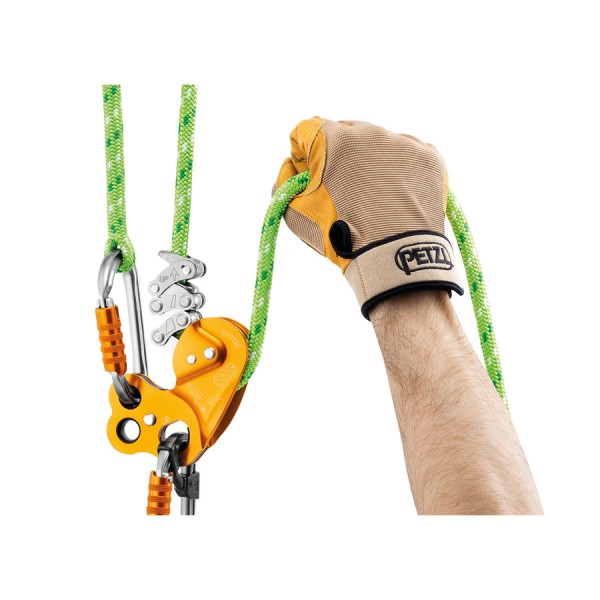

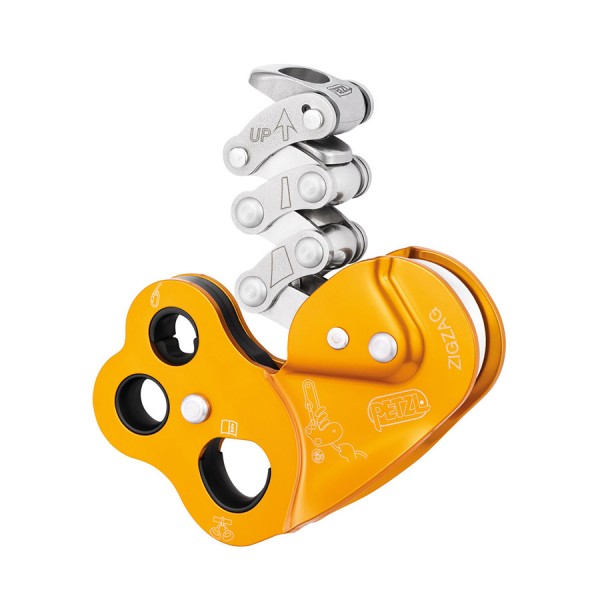

The ZIGZAG mechanical Prusik allows the user to move around efficiently in a tree using classic Prusik pulley system technique. The friction chain provides precision and fluidity when moving around.
  • Description
  • Key Features

Description

  • The pulley is mounted on sealed ball bearings to allow the slack to be taken up easily.
  • The device provides great versatility as it can be used on either doubled ropes or a single rope.

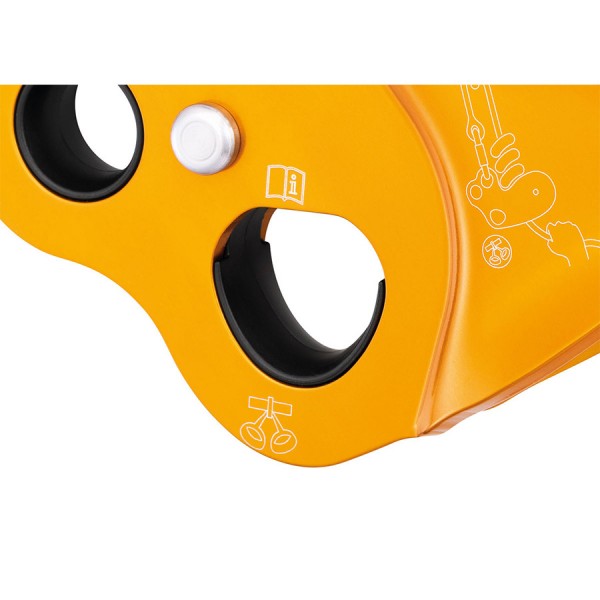

  • The lower attachment hole is fixed to ensure alignment of the device with the axis of the worker and to optimize grip.
  • The technique used is identical to the classic Prusik pulley system making it easy to operate – the device locks automatically on the rope once the friction chain extends.
  •  The release level ensures the rope feed is smooth and precise allowing the user great control over his/her movements and keeping movement in the tree efficient while the speed of movement is controlled by adjusting the pressure on the lever
  • The lower attachment hole is fixed to ensure alignment of the device with the axis of the worker and optimize grip
  • Versatile: – for use on either doubled ropes or a single rope, thanks to the CHICANE accessory, which offers more friction on the descent, and the KNEE ASCENT assemblies, which facilitate the ascent – upper attachment hole for the rope end when using a doubled rope or for the CHICANE auxiliary braking device when using a single rope.

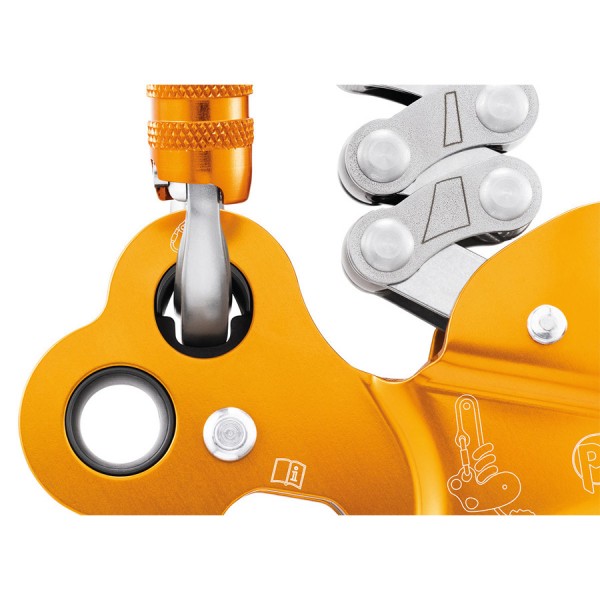

  • It has a flexible positioning ring that helps keep the connector oriented along its major axis – auxiliary attachment hole for adding a ZILLON lanyard or connecting a second system
  • Durability: – steel construction for improved durability – separated and curved side plates for better wear resistance
  • Rope compatibility: 11.5 to 13 mm diameter ZIGZAG allows the user to work in compliance with the ANSI Z133 standard

Key Features

Specifications
Material(s): aluminum, steel, nylon
Weight: 365 g
Rope compatibility: EN 1891 type A low stretch kernmantel ropes
Working load limit: 140 kg
Certification(s): CE

Petzl

Brand: Petzl

Product Code: ZIGZAG2019

Shipping Weight: 0.4kg.

Documents
