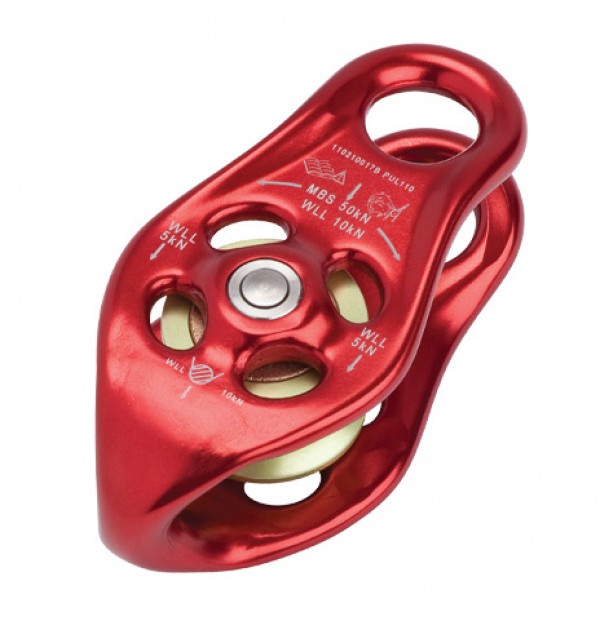

DMM Pinto Pulley - Small

DMM Pinto Pulley - Small
Click any thumbnail to view gallery.
£24.50 Exc. VAT
£29.40 Inc. VAT
Quantity:

With hardly a straight line in sight, the hot forged curves and fairlead flares of our Pinto Pulley make for an ultra efficient, ‘textile friendly’ environment.

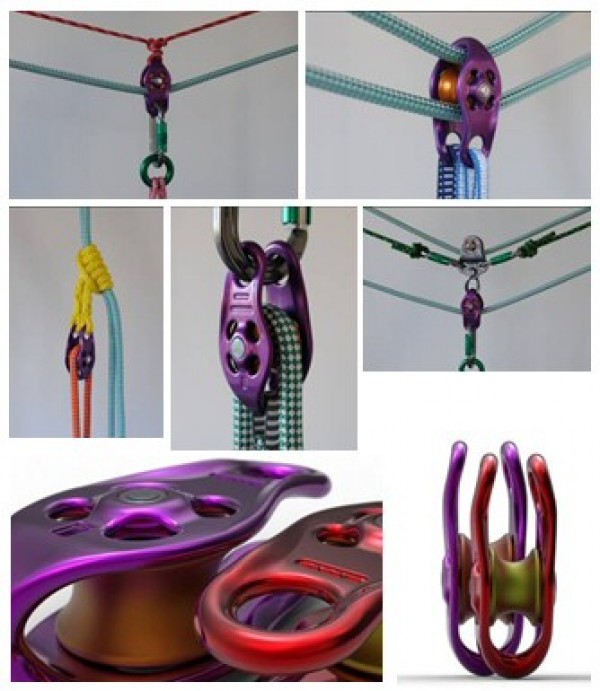

Clip, hitch, splice or thread the anchor holes or the becket to give numerous work and rescue configurations (textile attachments can help minimise any torsional build up in closed systems).
An indispensable component of the DMM/Teufelberger CE lanyard system, but equally at home on all other mechanical advantage systems or lifelines.
Comes with minimum fuss, highly efficient Oilite bushings.
Spacers are available to support the anchor holes when textile connecting elements compress the side plates.


  • Description
  • Key Features
  • Documents

Description


Features

  • Conforms to EN12278:2007 (Pulleys) and NFPA 1983 (2012 Edition) G Rating
  • Hot forged aluminium side plates provide strength and durability
  • Heat treated stainless steel spindles for high strength and corrosion resistance
  • Riveted and tamperproof assembly
  • Pre lubricated Oilite bushing for smooth operation and minimal maintenance
  • Recommended for aborist, rescue, hauling and many applications where friction reduction is required
  • Anodised to BS EN 7599:2010 AA10 Sealed for corrosion protection
  • Individually markerd for traceability

Fall Protection Rescue Rope Access Tree Care


Key Features


Strength WLL Rope Diameter Dimensions Weight

50kN10kNmax 14mm93 x 45 x 35mm111g

DMM

Brand: DMM

Product Code: PintoS

Shipping Weight: 0.15kg.
